Abstract
Die-casting is a critical manufacturing process used to produce high-precision and high-quality components. However, various external factors, such as raw materials, equipment, and process parameters, can significantly affect part quality. This paper examines the influence of these external factors on die-casting part quality and proposes effective mitigation strategies. Research findings indicate that external factors play a pivotal role in determining the quality of die-cast parts. Addressing these factors through strategic supplier selection, regular maintenance of equipment, and optimization of process parameters can lead to significant improvements in product quality. These insights provide valuable guidance for die-casting enterprises seeking to enhance product quality and maintain competitive advantage.
Introduction
The rapid development of modern industry has led to the widespread adoption of die-casting technology across various sectors. Renowned for its precision and cost-effectiveness, die-casting has become a cornerstone of modern manufacturing. However, external factors, including environmental conditions, raw material quality, equipment performance, and operator variability, can significantly impact die-casting quality. These factors are often beyond direct control, presenting challenges that require effective management. This paper explores the influence of these external factors on die-casting part quality and discusses strategies for mitigating their impact. Ongoing research is essential for reducing the influence of these factors and advancing die-casting technology to meet the evolving demands of the industry.
2. Key External Factors Affecting Die-Casting Production
Die casting is a widely used metal processing technique, and several external factors can significantly influence the production process. The following are three key factors that impact die-casting production:
Temperature: Maintaining the correct temperature range for molten metal is essential to ensure fluidity and plasticity during die casting. If the temperature deviates from the optimal range, the metal may fail to fill the mold properly or solidify unevenly, compromising product quality. Therefore, temperature control is critical for consistent molding and high-quality output.
Humidity: Variations in ambient humidity can affect mold surface adhesion, which in turn influences the flow and filling of molten metal. In high-humidity environments, moisture buildup on the mold surface can obstruct even metal distribution, leading to defects such as holes. Therefore, monitoring and controlling both ambient humidity and mold temperature are crucial to maintaining product quality.
Gas Environment: The gas environment in die-casting production plays a significant role in ensuring product integrity. Proper gas evacuation from the mold is necessary to prevent the formation of bubbles or holes in the final product. Additionally, the die-casting process generates harmful gases, such as metal vapors and exhaust, which pose risks to worker health and the environment. Implementing effective ventilation and exhaust systems is vital to maintaining a safe workplace and ensuring the quality of the die-cast components.
3. Impact of External Factors on the Quality of Die-Casting Parts
3.1 The Role of Temperature and Humidity in Die-Casting Quality
External factors, particularly temperature and humidity, have a significant impact on the quality of die-casting parts. Elevated temperatures increase the fluidity of molten metal, which can introduce a number of quality issues. At higher temperatures, molten metal is more likely to absorb gases such as oxygen, which can lead to the formation of holes if gas evacuation is insufficient. These holes weaken the density and strength of the die-casting parts, ultimately compromising their overall quality. Moreover, excessive fluidity can disrupt the solidification process during filling, resulting in internal shrinkage and further degrading product quality.
High humidity also adversely affects die-casting quality by promoting pore formation at the molten metal-mold interface. In humid environments, moisture on the mold surface evaporates, creating gas. If this gas is not properly evacuated, it can form pores in the casting, reducing density and strength. Additionally, high levels of humidity can cause surface defects. As molten metal cools in humid conditions, the interaction between moisture and solidifying metal can lead to surface imperfections that impact both the appearance and functionality of the final product.
Effective management practices are equally important. Poor operational practices and inadequate management can significantly degrade die-casting quality. Adherence to standardized operating procedures is essential to maintaining consistent quality control throughout the production process. Furthermore, enhancing employee training and skill development is crucial for improving the proficiency and efficiency of the die-casting process. By closely monitoring and addressing these external factors, manufacturers can implement targeted strategies to improve die-casting quality.
3.2 Mold Design and Manufacturing
In die-casting, the mold is a critical component designed to withstand high temperatures and pressures. Poor mold design can disrupt the flow of molten metal during filling, leading to internal defects such as inclusions. For example, a poorly designed flow channel can obstruct the smooth flow of molten metal, resulting in trapped air or metal impurities. Similarly, inadequate cooling systems can lead to uneven solidification, causing defects such as warping or internal voids. Therefore, mold design must account for the molten metal's fluidity and solidification rates to minimize the risk of defects.
The selection of appropriate mold materials is equally crucial, as it directly affects the surface finish and dimensional accuracy of the casting. Since the mold comes into direct contact with molten metal, insufficient hardness can lead to surface wear, compromising the final surface finish. Additionally, poor thermal conductivity in mold materials can result in uneven cooling and solidification, negatively impacting dimensional accuracy. Therefore, selecting mold materials with optimal hardness, wear resistance, and thermal conductivity is essential for achieving high surface finish and precise dimensional control in die-cast parts.

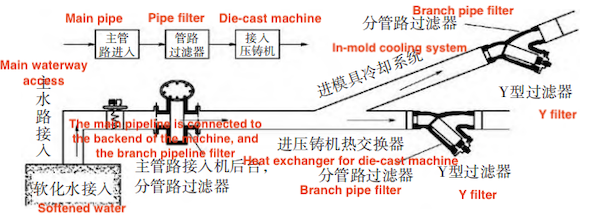

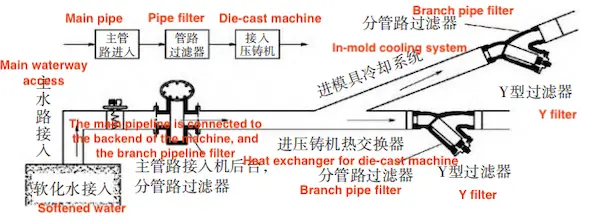

Figure 1 Die-Casting Machine Water System Filter Device Setup
3.3 Raw Material Quality
In die-casting production, raw material quality plays a crucial role in determining the final product's performance. Unstable alloy compositions and excessive impurities are key factors that directly affect the strength and durability of die-cast parts. Alloys, which are composed of various metal elements, must have stable compositions to ensure the desired mechanical properties. Any deviation from the specified alloy composition compromises the casting's ability to meet performance standards and can result in structural weaknesses.
For instance, alloys often require precise proportions of copper and zinc to meet strength requirements. Inadequate control over the levels of these elements can lead to a casting that fails to meet its design specifications. Impurities such as oxides, sulfides, and metal debris are common in raw materials, but excessive levels of these contaminants can cause significant issues during the die-casting process. High concentrations of oxides and sulfides reduce the alloy's fluidity, leading to pore formation that weakens the casting's strength and sealing properties. Inclusions, such as metal debris, disrupt the uniformity of the casting's structure, further diminishing its overall performance.
4. Research on Coping Strategies
4.1 Control of the Production Environment
In die-casting production, external factors such as temperature and humidity significantly influence the production environment. To maintain stable production processes and ensure high-quality products, it is critical to address these factors effectively. Maintaining a consistent temperature is essential, as temperature directly affects the viscosity and flow characteristics of molten metal. Even small fluctuations can disrupt fluidity, compromising molding quality. To achieve temperature stability, air-conditioning systems or enhanced insulation should be implemented.
Controlling humidity is equally important, as excessive moisture can interfere with mold performance. Moisture on the mold surface can hinder the flow of molten metal, leading to surface defects. To counteract this, ventilation systems should be optimized by installing exhaust fans and ducts to remove moisture and maintain air circulation. Additionally, dehumidifiers can be used to ensure that optimal humidity levels are maintained throughout the production process.
4.2 Optimizing Mold Design and Manufacturing
External factors also impact die-casting quality, making it essential to optimize mold design and manufacturing. Mold design directly affects both product quality and production efficiency. Advanced design software, such as Finite Element Analysis (FEA), should be employed to analyze stress distribution and deformation, enabling the optimization of mold structures to prevent defects and enhance durability.
Selecting high-quality steel for mold production is crucial, as it improves hardness, wear resistance, and service life, ensuring dimensional stability and superior surface finish. Other strategies include optimizing the mold’s cooling system to improve cooling speed and uniformity, reducing defects. Proper placement of water spray and air escape holes can also help prevent thermal fatigue and pore formation (Figure 2).

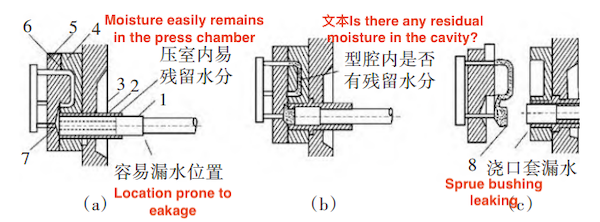

1. Injection punch 2. Pressure chamber 3. Liquid metal 4. Fixing 5. Moving mold 6. Cavity 7. Runner 8. Residual material
Figure 2 Die-casting mold opening
4.3 Strict Control of Raw Material Quality
First, regular testing and evaluation of alloy composition and impurity content in raw materials supplied by vendors is critical. The composition of the alloy directly impacts the performance and quality of die-cast products, while excessive impurities can weaken the material and lead to quality issues. Maintaining strong, long-term relationships with suppliers and conducting regular testing of their raw materials ensures consistency in material quality.
Second, advanced material analysis techniques are essential. Tools like spectral analysis and electron microscopy should be employed to assess the composition and structure of raw materials thoroughly. These techniques ensure material stability and allow for early identification of potential quality issues.
Third, developing a robust supply chain management system is necessary. Close collaboration with suppliers helps establish stable, long-term partnerships, allowing for better control over raw material quality. Clear cooperation standards and quality control requirements should be agreed upon with suppliers to ensure a steady supply of high-quality materials.
Finally, reinforcing internal quality management practices is crucial. In die-casting production, strict control over raw material quality is essential for ensuring consistently high inspection pass rates and precise material application. An effective quality management system, coupled with comprehensive monitoring and prompt resolution of quality issues, is key to maintaining product stability.
Figure 3 Key Accessories in the Filling Process
5. Conclusion
External factors have a substantial impact on the quality of die-cast products throughout the production process. By thoroughly analyzing these factors, manufacturers can develop targeted strategies to enhance product quality. Managing critical variables such as temperature, pressure, mold design, and operational practices is essential for ensuring that die-cast products consistently meet the required quality standards.
